P/N. 10404820
Modell
Farbe
Eigenschaften

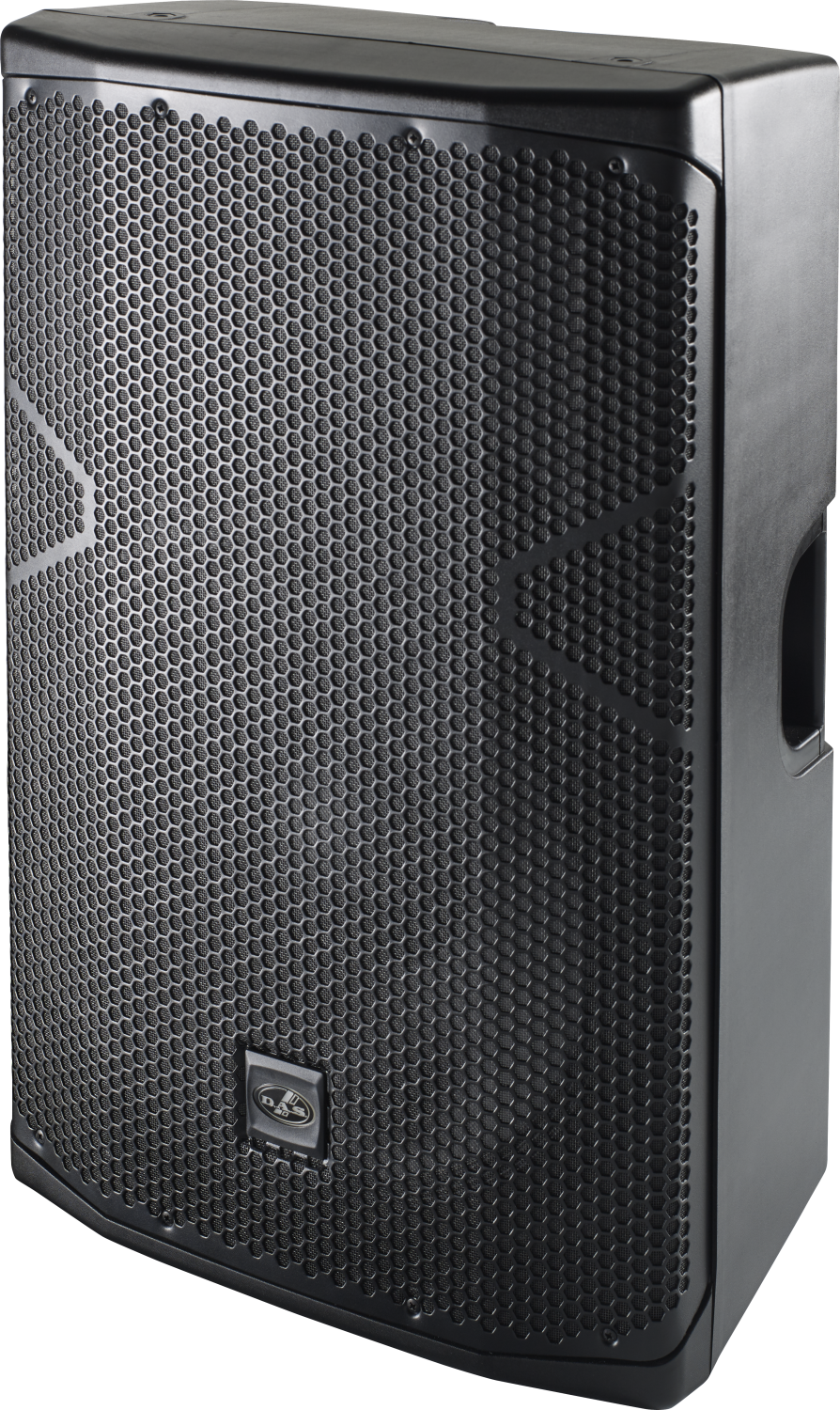

Passives 15″-Zweiwege-Fullrange-System, 500 W, 90 x 60 Horn, Polypropylengehäuse, schwarz
Performance | |
Frequency Range (-10 dB) | 60 Hz – 20 kHz |
Horizontal Coverage (-6 dB) | 90º |
Vertical Coverage | 60º |
Nominal Impedance | 8 ohms |
RMS Power Handling | 500 W |
Peak Power Handling | 2000 W |
On-axis Sensitivity 1W/1 m | 99 dB SPL |
Maximum Peak SPL at 1 m | 132 dB |
Recommended Amplifier | PA-1500 |
Connectors | |

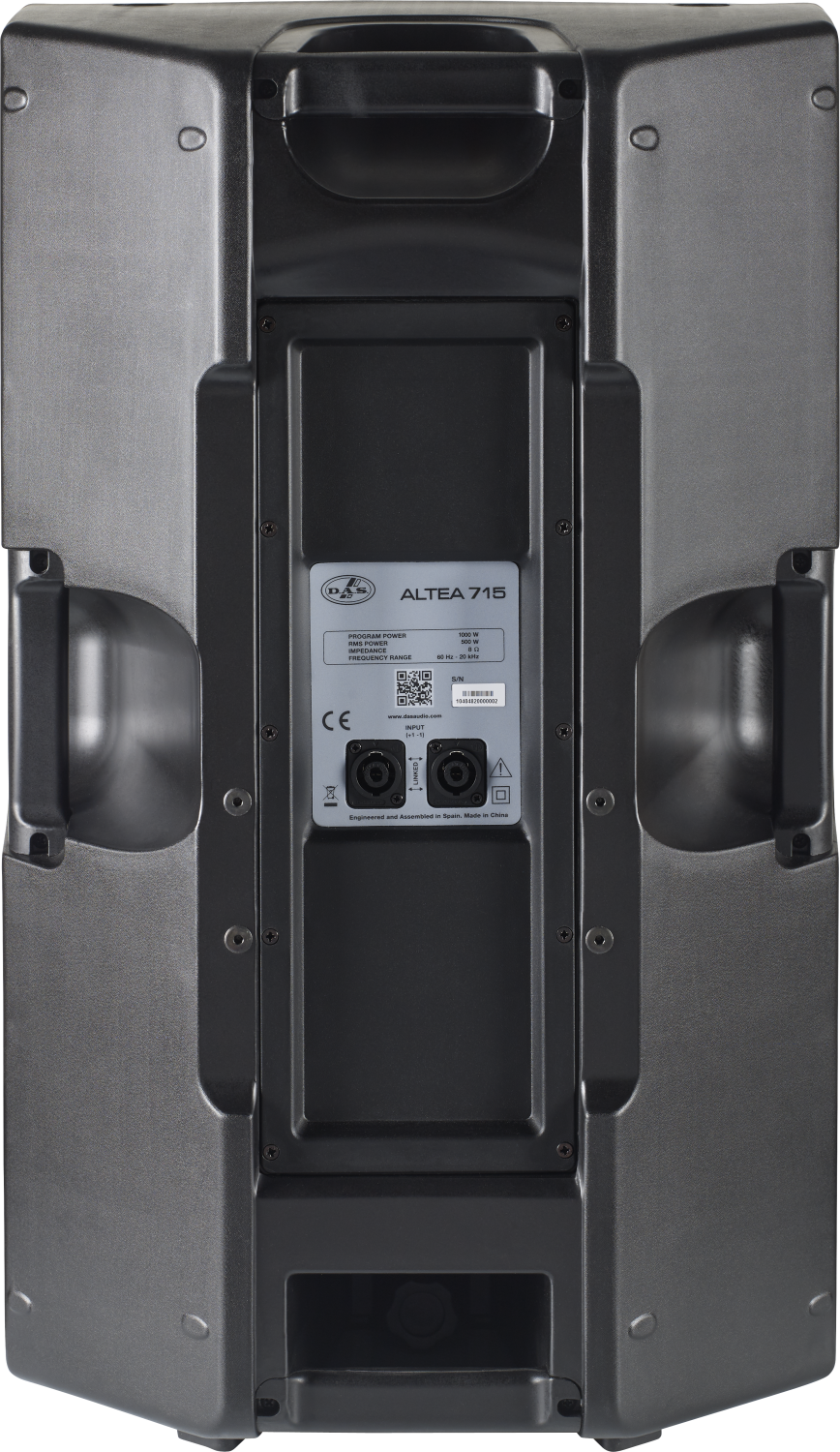

Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Polypropylene |
Enclosure Geometry | Trapezoidal |
Rigging | M8 Rigging Points |
Color | Black |
Depth | 380 mm (15,0 in) |
Dimensions ( H x W x D ) | 710 x 440 x 380 mm 28,0 x 17,3 x 15,0 in |
Net Weight | 18,8 kg ( 41,4 lb ) |
Components | |
LF Driver | 15FV |
HF Driver | M-28 |
Shipping | |
Carton Dimensions ( H x W x D ) | 805 x 530 x 445 mm 31,7 x 20,9 x 17,5 in |
Shipping Weight | 23,3 kg ( 51,5 lb ) |
