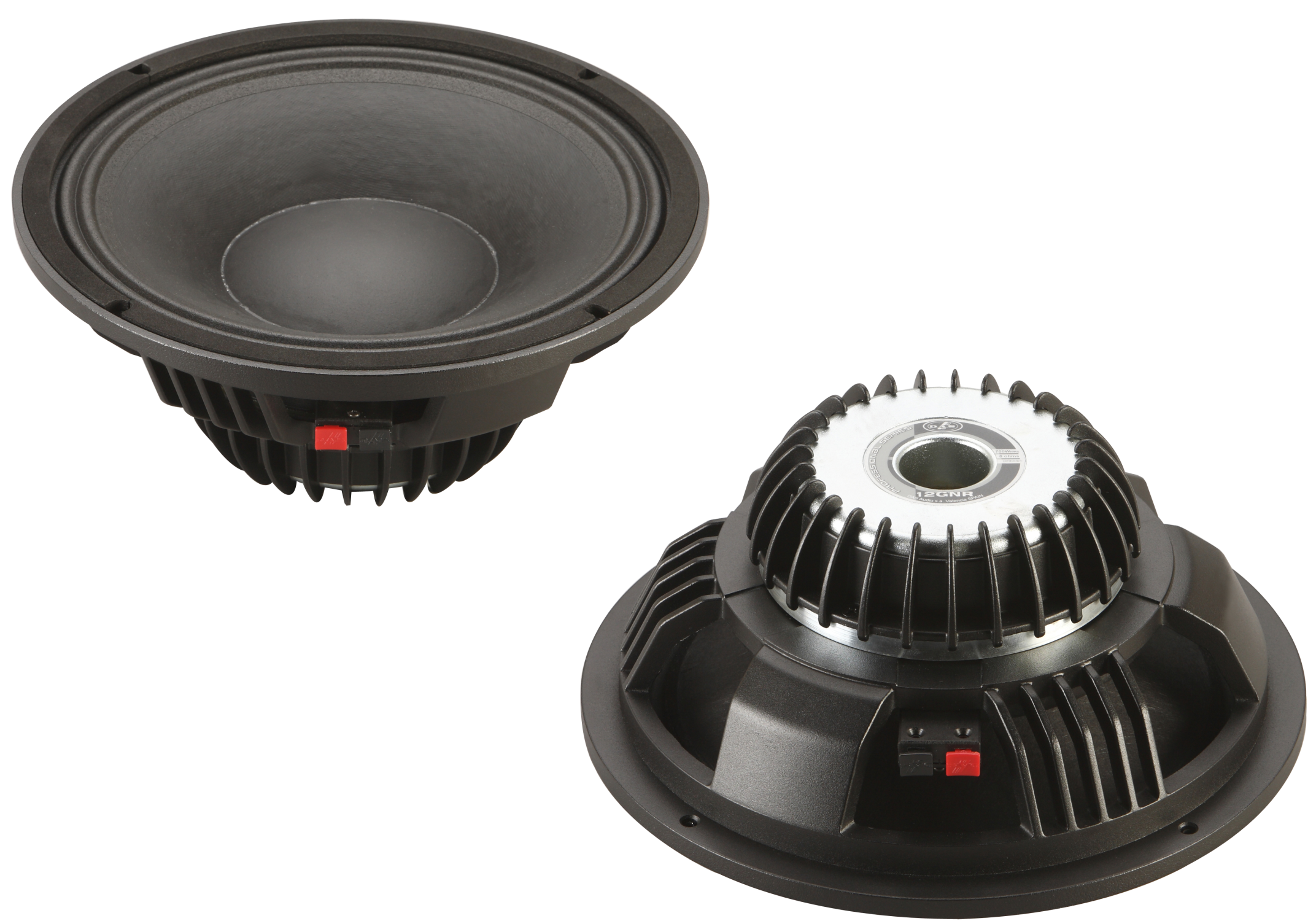

12GNR - DAS Audio

To provide the best experiences, we use technologies such as cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting, or withdrawing consent, may adversely affect certain features and functions.

Functional Always active

The storage or technical access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.

Preferences

The storage or technical access is necessary for the legitimate purpose of storing preferences not requested by the subscriber or user.

Statistics

Technical storage or access that is used exclusively for statistical purposes. Storage or technical access that is used exclusively for anonymous statistical purposes. Without a request, voluntary compliance by your Internet service provider, or additional records from a third party, information stored or retrieved solely for this purpose cannot be used to identify you.

Marketing

The storage or technical access is necessary to create user profiles to send advertising, or to track the user on a website or multiple websites for similar marketing purposes.

Performance
Nominal Diameter	12″
Nominal Impedance	8 ohms
Peak Power Handling	2800 W
RMS Power Handling	700 W
On-axis Sensitivity 1W/1 m	96 dB SPL

Dimensions-Weight
Net Weight	6,4 kg ( 14,0 lb )
Shipping
Carton Dimensions ( H x W x D )	200 x 360 x 360 mm 7,9 x 14,2 x 14,2 in
Shipping Weight	6,9 kg ( 15,2 lb )
