INTEGRAL SERIES Complete series

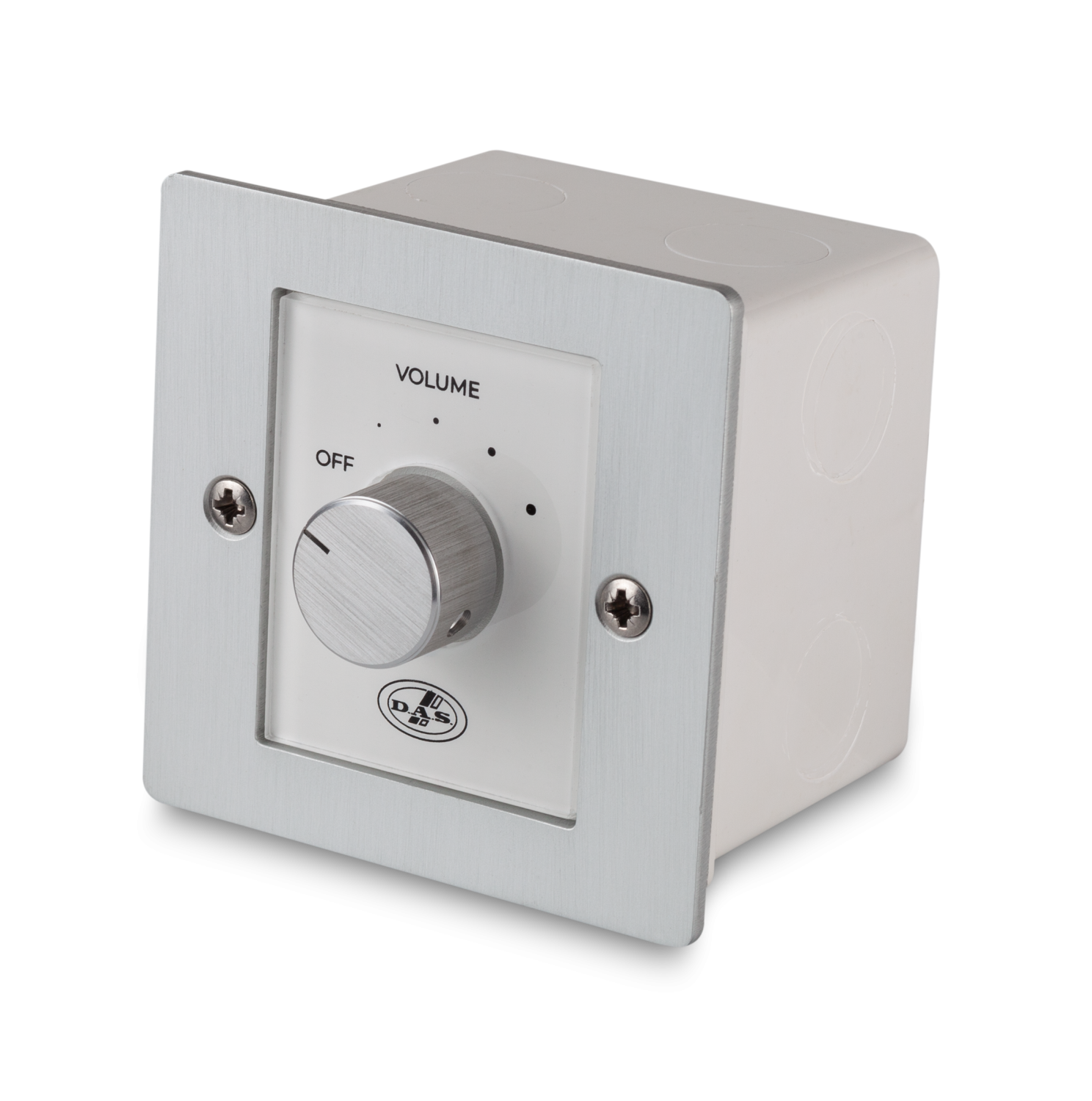

INTEGRAL-VC1

P/N. 10721080


Model

Color

  • INTEGRAL-VC1
    P.N. 10721080

Features

Wall panel format volume control for 100/70 V lines. Max power 120 W. 5 steps of -6dB

Download data sheetWhere to buy

description

INTEGRAL-VC1 is a 100V volume control capable of handling power up to 120W. The volume is adjustable with a rotatable selector in 5 steps of -6dB. It is equipped with a relay and separated input for the reception of 24V priority signals. When a priority signal is sent to the controller the volume will automatically switched to the maximum level. This is a very useful tool for emergency and evacuation purposes.

technical data

Electronics
Power Handling120 W
Frequency Response20 Hz – 20 kHz
Taps
Tap 1Tap 2Tap 3Tap 4Tap 5
0 dB-6 dB-12 dB-18 dBOFF
Attenuation6dB
Dimensions-Weight
Dimensions ( H x W x D )86 x 86 x 52 mm
3,4 x 3,4 x 2,0 in
Net Weight0,5 kg ( 0,2 lb )

downloads

Title Format Size
Data Sheet
HT_INTEGRALVC1_00.pdf PDF 470 Kb
User Manual
UM_INT_VC1_EN.pdf PDF 172 Kb
Software
FactoryPresets_1.0.lib LIB 122 Kb
ALMA.Setup.2.0.3.exe EXE 128.97 Mb
ALMA-2.0.3.dmg DMG 166.96 Mb
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_VC1.dwg DWG 252 Kb

Download   Download selection
