PRODUCTS / ALTEA 400 SERIES
ALTEA-408A
P/N. 10404991
Model
P/N
Features
Lightweight multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
User definable 24-bit DSP with LCD screen
Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
Stackable 3-band EQ
Standby Mode
Rigging points
Applications
Live sound reinforcement
Speech and vocals
Music playback in entertainment
A/V, and institutional venues
The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

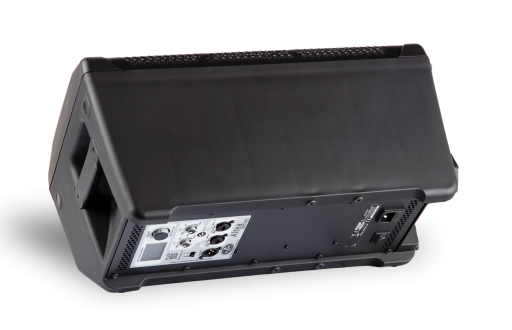

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 90º |
| Maximum Peak SPL at 1 m | 123 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrol™ |
| Current Draw 230 V / 115 V | 0.8 A/1.6 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Finish | Textured |
| Color | Black |
| Dimensions ( H x W x D ) | 480 x 280 x 260 mm 18,9 x 11,0 x 10,2 in |
| Net Weight | 9,5 kg ( 20,9 lb ) |
| Components | |
| LF Driver | 8GV |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 550 x 350 x 340 mm 21,6 x 13,8 x 13,4 in |
| Shipping Weight | 13,0 kg ( 28,6 lb ) |
Download selection
| ANL-1 | Set of 4 M8x13 forged steel eyebolts+4 carabiners, for flying |
|
| ANL-1 | Set of 4 M8x13 forged steel eyebolts+4 carabiners, for flying |
| AX-112-5 | Wall mount bracket for Altea Series, WLL=25kgf, black |
| AXW-ALT | Wall mount bracket and safety cable for various models, WLL=20kgf, black |
| FUN-AL408 | Protective transport cover for 1 u. ALTEA-408/ALTEA-408A/ALTEA-408-T, black |
| TRD-6 | Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black |
| TRD-7 | 35 mm ring lock adjustable height (1005 mm – 1485 mm) pole mount for use between satellite and sub systems, black |
| TRPD-S2-PAK | Set of 2 aluminum speaker stands with transport cover for all models with 35mm pole mount socket, black. |
| 8GV | Low-mid frequency 8″ speaker, 1.5″ VCD, ferrite magnet, 200 W AES, 8 ohm |
| M-32 | Compression driver, 1″ VCD, ferrite magnet, 1″ throat, 20 W AES, 4 ohm |
| MP-ALT408A | Complete power module for Altea-408A |
| OR300+100UM | Class D switching power supply Orbit amplifier, 1×300 W @ 4ohm + 1×100 W @ 8 ohm |
