LARA-100
P/N. 10420500
Model
P/N
Features
Self-powered cardioid Line array
8 channel amplifier, Class D, 6000Wrms
Controlled horizontal dispersion up to 100 Hz.
Cardioid attenuation of -15dB (63 Hz – 200 Hz)
IP control and monitoring through ALMA™
FIR processing and digital management via DASaim™
Applications
Outdoor festivals and live concerts
Theatres, auditoria and performing arts centers
Large live music clubs
Live sound touring/Rental services

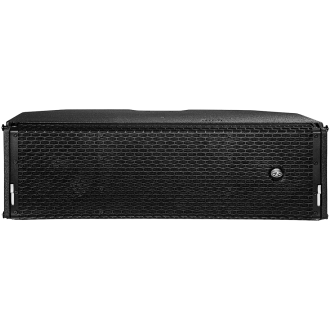

LARA® is a 4-way symmetrical, cardioid, self-amplified line array system with 6000Wrms power. LARA® has a linear performance of 146 dB SPL MAX and a wide dynamic range making it an ideal system for large events. Thanks to the cardioid design, we achieve a rear attenuation of -15 dB in the range of 63 Hz – 200 Hz.
LARA® incorporates 2 x 12″ woofers with a 4″ voice coil plus another 2 x 8″ in cardioid configuration; for the midrange, it uses another 2 x 8″ speakers with 2.5″ voice coils. The high-frequency section is made up of two DAS M-78N compression drivers, with 3″ voice coils and a 100º horizontal dispersion waveguide. All the elements have been designed and purpose-built to maximize the system’s efficiency.
The LARA® class D amplifier integrates a switching power supply with power factor correction (PFC), ensuring maximum performance and efficiency regardless of the mains voltage. Each amplifier provides 6000Wrms divided into eight channels, 6 of them in bridge mode to feed the 2 x 12″ and the two compression drivers. The remaining two channels feed the front 2 x 8″ and rear 2 x 8″ transducers.

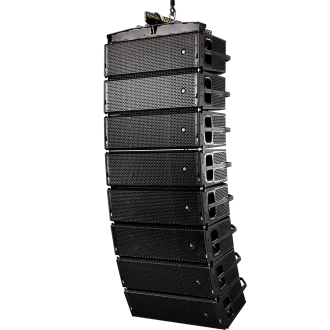

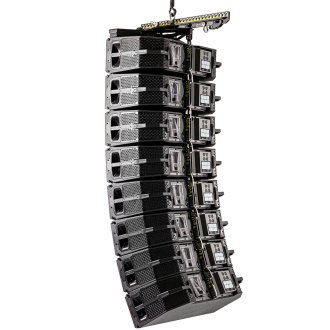

The 3-point rigging system works for both LARA® and LARA® SUB, allowing us to hang arrays of up to 24 LARA units and 16 LARA® SUB units. The FSS TM (Fast Set Splay) angulation system allows angles to be adjusted in steps of 1º, from 0º to 7º from the stacked position, significantly reducing assembly time.
| Performance | |
| Frequency Range (-10 dB) | 50 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 100º |
| Vertical Coverage | Splay Dependent |
| Maximum Linear SPL1 | 146 dB |
| Maximum SPL2 | 150 dB |
| 1. Measured Maximum Linear SPL at 1m according to AES75 standard using 18dB crest factor M-Noise. 2. Measured Maximum SPL at 1m using burst noise. | |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 6000 W |
| Input Type | Balanced Analog |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Audio/Data Input Connector | etherCON |
| Control | ALMA |
| Audio + Data Loop Thru Connector | etherCON |
| AC Output Connector | powerCON TRUE1 |
| Current Draw 230 V / 115 V | 7.5 A/15 A |
| Sampling Rate | 96kHz |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal 7º |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| IP Rating | IP43 |
| Dimensions ( H x W x D ) | 355 x 1.170 x 645 mm 14,0 x 46,0 x 25,4 in |
| Net Weight | 86,0 kg ( 189,6 lb ) |
| Components | |
| LF Driver | 12GXNC |
| MF Driver | 8MXN |
| LF Cardioid Driver | 8GXN |
| HF Driver | M-78N |
Download selection
| AX-LARA | Rigging bumper for LARA (max 24 u.) and LARA-SUB (max 16 u.), black |
| AX-PULL-LARA | Pull-back hardware for the bottom box of a LARA array. |
| EC-09 | 0.9m CAT5e etherCON (data+audio) DASnet cable |
| EC-20 | 20m CAT7 etherCON (data+audio) DASnet cable |
| EC-30 | 30m CAT7 etherCON (data+audio) DASnet cable |
| ECPK-20 | 20m Hybrid CAT7 etherCON (data+audio)+powerCON TRUE 1, DASnet cable |
| FRAME-AX-LARA | Rigging frame for the AX-LARA, black |

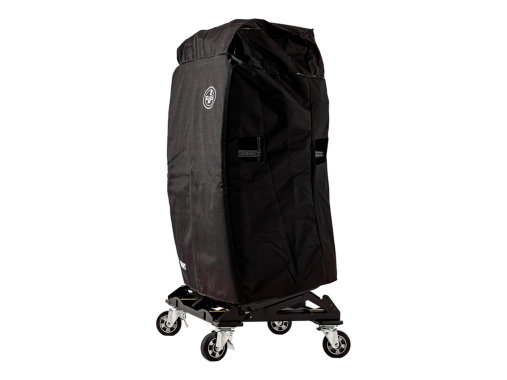

| FUN-4-LARA | Protective transport cover for 4 u. LARA on PL-LARA, black |
| JP-LARA | Joining plate for array assembling LARA/LARA-SUB, black |
| PICKUP-AX-LARA | Pick-up bar for the AX-LARA, black. |

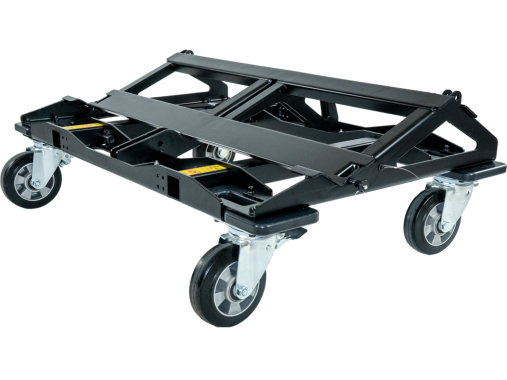

| PL-LARA | Steel transport dolly for LARA (max 4 u.), black |
| PLINK1-09 | 0.9m powerCON TRUE1 cable |
| RACK-ARA-208 | The RACK-ARA-208 is a robust 8U touring rack, designed by DAS Audio for the ARA systems. Built from birch plywood and finished with polyurea paint, it ensures durability in demanding touring conditions. The RACK-ARA-208 houses a Matrix-66 input/output signal+Alma panel, efficiently managing power and signal distribution. To optimize connectivity, it features a PP-6S power distribution panel with six Powercon True1 outlets and a Socapex connector with six circuits. In addition to versatility, the rack is equipped with a PD-6-208V 3-phase 32A power distributor for efficient power management. Integrated M10 nuts in its structure provide suspension points when required, enhancing the rack’s adaptability. The RACK-ARA-208V offers a blend of resilience, functionality, and flexible operation, designed for efficient setup across varied conditions. |
| RACK-ARA-230 | The RACK-ARA-230, is a robust 8U touring rack, designed by DAS Audio for the ARA systems. Built from birch plywood and finished with polyurea paint, it ensures durability in demanding touring conditions. The RACK-ARA-230 houses a Matrix-66 input/output signal+Alma panel, efficiently managing power and signal distribution. To optimize connectivity, it features a PP-6S power distribution panel with six Powercon True1 outlets and a Socapex connector with six circuits. In addition to versatility, the rack is equipped with a PD-6-230V 3-phase 32A power distributor for efficient power management. Integrated M10 nuts in its structure provide suspension points when required, enhancing the rack’s adaptability. The RACK-ARA offers a blend of resilience, functionality, and flexible operation, designed for efficient setup across varied conditions. |
| SPK18-20 | Socapex multipin power extension cord. 6 circuits, 20 m. |
| SPK18-6TRUE1 | Socapex multipin fan out. Socapex to 6 PowerCon True1 |
| TOP-PL-LARA | Wooden transport support for 4 LARA on PL-LARA |
| V-AX-LARA | V-shaped pivot plate for horizontal movement of the AX-LARA. |
| 12GXNC | Low-mid frequency 12″ speaker, 4″ VCD, ferrite magnet, 700 W AES, 8 ohm |
|
| 8GXN | Low-mid frequency 8″ speaker, 2.5″ VCD, neodymium magnet, 300 W AES, 8 ohm |
|
| 8MXN | Low-mid frequency 8″ speaker, 2.5″ VCD, neodymium magnet, 300 W AES, 8 ohm |
| GM-12GX | Recone kit for 12GX speaker |
|
| GM-8GX | |
|
| GM-8MX | Recone kit for 8MX speaker |
| GM-M75N | Diaphragm for M-75N/M-75/M-80 compression driver |
|
| LITEMOD4HC | Class D switching power supply PowerSoft amplifier, 4 x 750 W @ 4 ohm |
| M-78N | Compression driver, 3″ VCD, neodymium magnet, 1.5″ throat, 100 W AES, 8 ohm |
