ARA SERIES Complete series

MATRIX-22

P/N. 11106140

Model

Color

MATRIX-22
P.N. 11106140

Features

1U matrix, 2 inputs/outputs, analog audio + ALMA, 1 Gbit Ethernet switch (4 ports), for ARA-P systems.

Download data sheet Where to buy

description

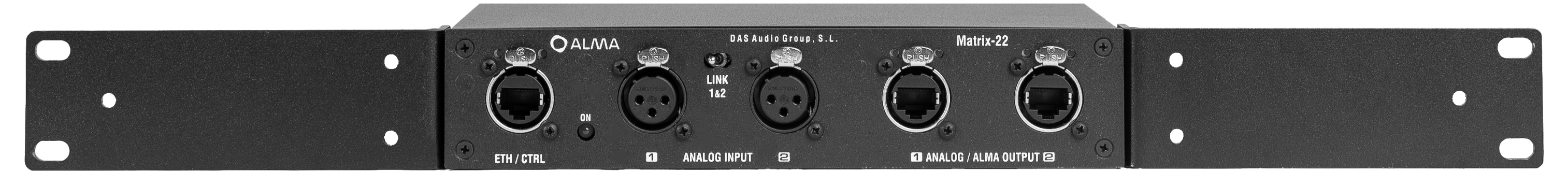

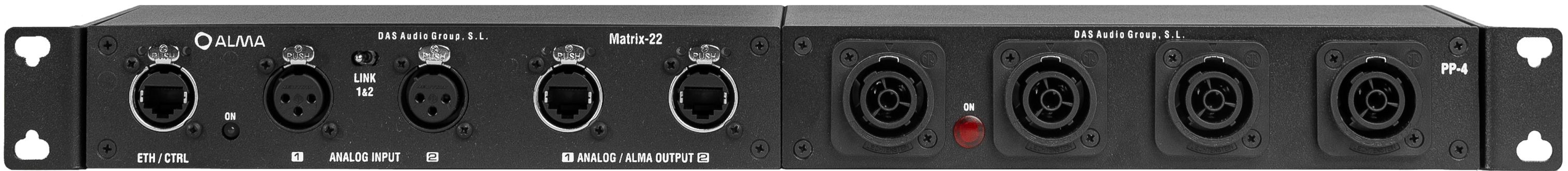

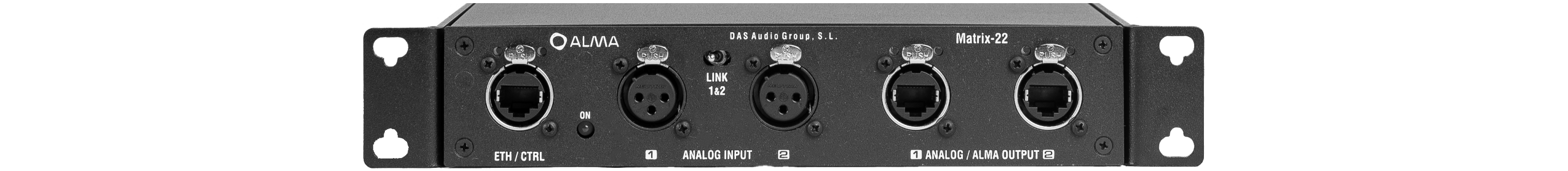

The Matrix-22 is a 1U 19” half rack-mount, dual input, dual output channel breakout box intended to distribute analog audio signals and monitoring & control (ALMA)

data to the ARA-P sound systems. It incorporates an integrated 1 Gbit 4-port Ethernet switch.

It is the most convenient solution when using ARA-P systems because of its simplicity and ease of use.

The internal ethernet switch combines the control data and analog audio in two etherCON outputs dedicated to connect the audio systems; 2 “ALMA outputs” intended to

be used to send audio and data to the groups of systems.

technical data

Audio
Audio Input Connector	Audio In: 2 x Female XLR
Audio Output Connector	Audio Out: 2 x Male XLR
Network (ALMA)
Input	etherCON
Output	etherCON
Audio & ALMA Network
Audio and Data Distribution	2 x etherCON Out
LEDS and Indicators
Power	ON – Green
Network Connectors	Left LED only – Green 100Mbit Right LED – Green 1Gbit
Data Connectors	Left LED – Link Green Right LED – Activity Orange
Power
AC Input Connector	PowerCON TRUE1
Power Supply	Universal Mains Switch Mode
Operating Range	90-250 VAC
Current Draw 230 V / 115 V	30 W
Dimensions-Weight
Dimensions ( H x W x D )	44 x 216 x 302 mm 1,7 x 8,5 x 11,8 in
Net Weight	2,0 kg ( 4,4 lb )
Shipping
Carton Dimensions ( H x W x D )	110 x 330 x 360 mm 4,3 x 13,0 x 14,2 in
Shipping Weight	3,4 kg ( 7,5 lb )
Package Includes	Audio and Network Data Distributor, Rack Mount Angle Brackets (2 units), Linking Plates (2 units), PowerCord.

downloads

Title	Format	Size
Data Sheet
HT_MATRIX22_00.pdf	PDF	2.02 Mb
User Manual
UM_Matrix_22_EN.pdf	PDF	3.14 Mb
UM_ARA_ES_v3.pdf	PDF	20.7 Mb
UM_ARA_EN_v5.pdf.pdf	PDF	24.21 Mb
Software
ALMA_Setup_2.1.0.exe	EXE	130.68 Mb
ALMA-2.1.0.dmg	DMG	167.02 Mb
Line Drawing
CAD_2D_MATRIX-22.dwg	DWG	290 Kb
