P/N. 11106150
Model
Color
Features
1U rack power distributor, 1 input and 4 PowerCon TRUE1 outputs, for ARA-P/ARA-M systems. Compatible with ECPK-XX hybrid cables and Matrix-22.

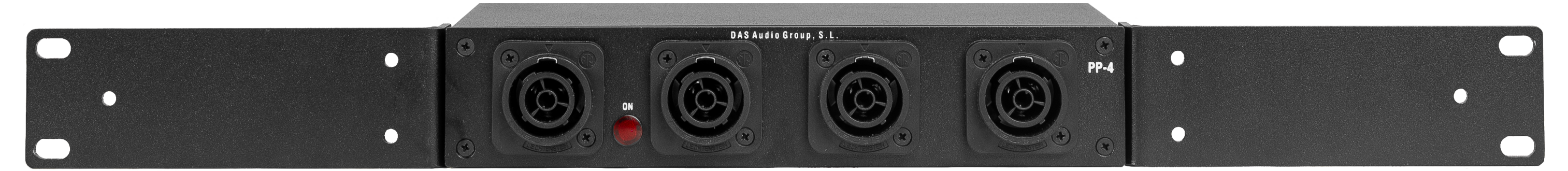

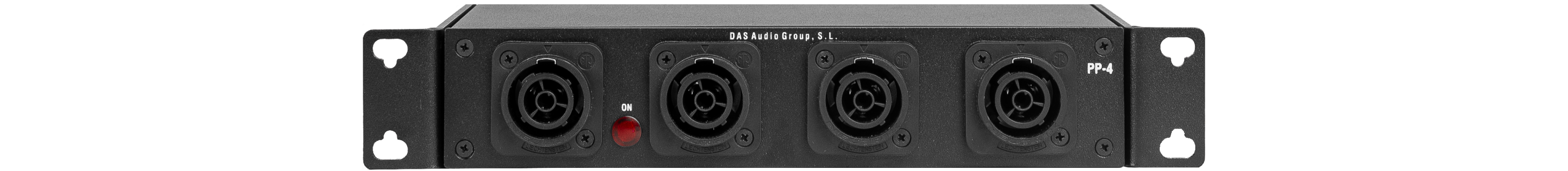

The PP-4 is a versatile 1U 19” half rack-mount power distributor, perfectly suited for the ARA-P and ARA-M sound systems. Featuring one PowerCon TRUE1 input and four PowerCon TRUE1 outputs, the PP-4 ensures efficient power distribution. Designed with compatibility in mind, it supports DAS Audio Hybrid cables (model ECPK-XX) and seamlessly integrates with the Matrix-22 audio and monitoring data distributor, making it an essential component for professional audio setups.
| Electronics and Audio | |
| Max Input Current | 16A |
| Max Output Current | 16A |
| LED Indicators | Power |
| Power Connectors | |
| Power Input | 1 x PowerCon TRUE1 (male), rear panel |
| Power Output | 4 x PowerCon TRUE1 (female), front panel |
| Loop | 1 x PowerCon TRUE1 (female), rear panel |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 44 x 216 x 311 mm 1,7 x 8,5 x 12,2 in |
| Net Weight | 1,8 kg ( 3,9 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 110 x 330 x 360 mm 4,3 x 13,0 x 14,2 in |
| Shipping Weight | 3,0 kg ( 6,6 lb ) |
