PRODUCTS / ARTEC 300 SERIES

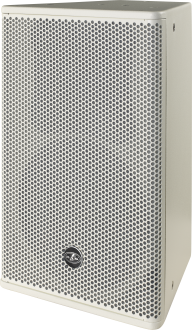

ARTEC-312.64-W
P/N. 10423857
Model
P/N
Features
1 x 12MI low frequency loudspeaker, 2.5” VCD
1 x M-34 compression driver
Rotatable 60º x 40º horn
Vertical or horizontal positioning
Optional AXU-AR312-W U-Bracket
M10 rigging points
Applications
A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

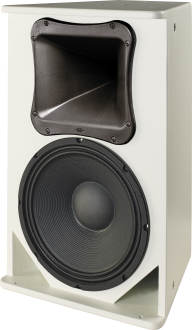

The ARTEC-312.64-W is a compact 2-way full-range loudspeaker system comprised of one 12″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The cabinet is fitted with M10 threaded suspension points.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 W |
| Peak Power Handling | 1200 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 127 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | White |
| Depth | 375 mm (14,8 in) |
| Dimensions ( H x W x D ) | 615 x 385 x 375 mm 24,2 x 15,2 x 14,8 in |
| Net Weight | 18,5 kg ( 40,8 lb ) |
| Components | |
| LF Driver | 12MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-614 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 710 x 450 x 450 mm 28,0 x 17,7 x 17,7 in |
| Shipping Weight | 20,5 kg ( 45,2 lb ) |
Download selection
| ANL-2 | Set of 4 M10x40 forged steel eyebolts+4 carabiners, for flying |
| AX-SPG1 | 28 mm TV clamp spigot adapter with M10 thread for AXU/AXF brackets |
| AXC-AT | C-clamp for using mounts with lighting truss |
| AXR-AR5-W | Adjustable flying mount for artec 500 series/SF-10/SF-26, white |
| AXU-AR312-W | “U” bracket, wall/ceiling/truss/TRD-2/TRD-6, for ARTEC-312.96-W/ARTEC-312.64-W, white |
| 12MI | Low-mid frequency 12″ speaker, 2.5″ VCD, ferrite magnet, 300 W AES, 8 ohm |
| BC-614 | 60 x 40 horn, polyamide with fiber, 1″ throat |
| F-AR315 | Passive crossover for ARTEC-315.96/ARTEC-315.64 |
| GM-12MI | Recone kit for 12MI speaker |
| GM-M34 | Diaphragm for M-34 compression driver |
| LAMP-F-21 | 21 W lamp for passive crossover |
| M-34 | Compression driver, 1.4″ VCD, ferrite magnet, 1″ throat, 50 W AES, 8 ohm |
