ARTEC 300 SERIES Complete series

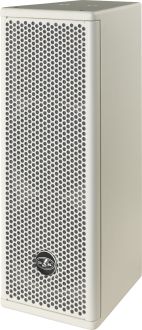

ARTEC-326-TW

P/N. 10423863


Model

Color

Features

Passive, 200 W, 2×6″, 2 way full-range, 90×60 rotatable horn, 70 V/100 V line transformer, white

  • SPL Max: 122 dB
  • Dispersion: 90º x 60º
  • Weight: 10,0 kg ( 22,1 lb )

Download data sheetWhere to buy

description

The ARTEC-326-TW 2-way passive full range loudspeaker utilizes twin 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. It is ideal for venues with low ceilings, or limited space when installed in the horizontal position.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount and factory installed line transformer.

technical data

Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance16 ohms
Transformer Taps 70 V12.5 W, 25 W, 50 W, 100 W
Transformer Taps 100 V25 W, 50 W, 100 W
RMS Power Handling200 W
Peak Power Handling800 W
On-axis Sensitivity 1W/1 m93 dB SPL
Maximum Peak SPL at 1 m122 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth260 mm (10,2 in)
Dimensions ( H x W x D )550 x 195 x 260 mm
21,7 x 7,7 x 10,2 in
Net Weight10,0 kg ( 22,1 lb )
Components
LF Driver6B
HF DriverM-26
Horn/WaveguideBCT-96
Shipping
Carton Dimensions ( H x W x D )638 x 266 x 330 mm
25,1 x 10,5 x 13,0 in
Shipping Weight0,0 kg ( 0,0 lb )
