ARTEC 500 SERIES Complete series

ARTEC-526-W

P/N. 10423220


Model

Color

Features

Passive, 400 W, 2×6″, 2 way full-range, 80×80 horn, white

  • SPL Max: 125 dB
  • Dispersion: 80º x 80º
  • Weight: 14,5 kg ( 32,0 lb )

Download data sheetWhere to buy

description

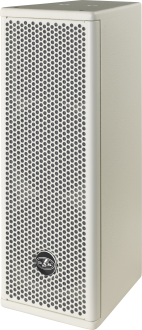

The Artec-526W employs twin 6P woofers for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.

technical data

Performance
Frequency Range (-10 dB)60 Hz – 18 kHz
Horizontal Coverage (-6 dB)80º
Vertical Coverage80º
Nominal Impedance8 ohms
RMS Power Handling400 W
Peak Power Handling1600 W
On-axis Sensitivity 1W/1 m93 dB SPL
Maximum Peak SPL at 1 m125 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

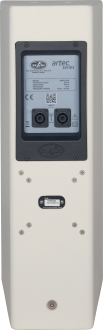

Connectors
Audio Input Connector1 x speakON NL4
Audio Output Connector1 x speakON NL4
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorWhite
Depth260 mm (10,2 in)
Dimensions ( H x W x D )550 x 195 x 260 mm
21,7 x 7,7 x 10,2 in
Net Weight14,5 kg ( 32,0 lb )
Components
LF Driver6P
HF DriverM-34
Horn/WaveguideBC-88
Shipping
Carton Dimensions ( H x W x D )638 x 266 x 330 mm
25,1 x 10,5 x 13,0 in
Shipping Weight15,5 kg ( 34,2 lb )

downloads

Title Format Size
Data Sheet
HT_ARTEC526W_00.pdf PDF 1.82 Mb
User Manual
UM_AR52_01_EN.pdf PDF 1.67 Mb
Configurations Guide
CG_AR500.pdf PDF 21.29 Mb
Modeling Data
MD_Artec500_GLL.zip ZIP 402 Kb
MD_DAS_GLL_v14.zip ZIP 222.04 Mb
Software
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_AR526.dwg DWG 372 Kb
LD_2D_AR526.svg SVG 108 Kb
LD_3D_AR526_SKETCHUP_01.skp SKP 426 Kb
Catalogs
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb

Download   Download selection
