DECO-40-T

P/N. 10213234

Model
P/N

Features

2-way 4″ Coaxial High-Performance Ceiling System.
Multi-tap transformer 8 ohm & 70V/100V.
Auto-locking tabs for secure, hands-free mounting.
Front selector for hassle-free power adjustments.

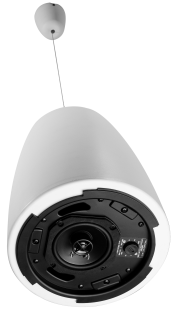

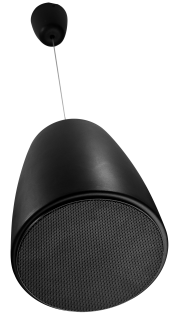

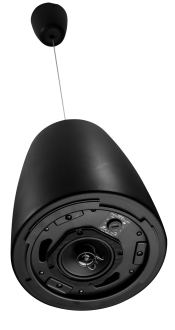

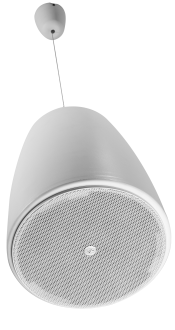

PK-40T accessory for versatile pendant mounting, available in white or black
Frameless grille design, available in white or black.

Applications

Professional Installation Systems
Houses of Worship
Auditoriums/Theaters
Hotel Ballrooms and Meeting Rooms


The DECO-40-T is a sophisticated ceiling speaker system designed for top-tier audio performance and seamless aesthetic integration. Featuring a sturdy steel enclosure and a polypropylene front, it provides 125º conical coverage. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for easy parallel connections. The DECO-40-T operates at 8-ohm nominal impedance or in a 100V line system, with tap settings of 10W, 20W, and 30W accessible at the front. With an RMS power handling of 50W and peak power of 200W, and a maximum peak SPL of 112 dB, it delivers clear and powerful sound.

Its compact design, with a cut-out diameter of 185 mm (7.3 in), allows straightforward installation in various ceiling environments. Measuring 220 x 220 x 220 mm and weighing 2.7 kg (5.9 lb), it strikes a balance between size, power, and aesthetic discretion. The PK-40T accessory transforms it into a pendant speaker for greater placement flexibility and sound direction, enhancing its utility in spaces where ceiling mounting is not optimal. Available in black and white finishes, the DECO series seamlessly matches any interior design.

For optimal performance, pair the DECO-40-T with the INTEGRAL-A402 or INTEGRAL-A404 amplifiers. Using the Integral Matrix and processors, fully compatible with ALMA™, enhances the speakers’ capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and maximum audio quality.

The modeling data for DECO-40-T / DECO-40-LP / DECO-65-T / DECO-80-T / DECO-80-TS are valid for EASE Focus, EASE Evac, and EASE Address.

Performance
Frequency Range (-10 dB)75 Hz – 20 kHz
Nominal Impedance8 ohms
Conical Coverage125º
Transformer Taps 70 V8 Ω / 5 W / 10 W / 15 W
Transformer Taps 100 V8 Ω / 10 W / 20 W / 30 W
RMS Power Handling50 W
Peak Power Handling200 W
On-axis Sensitivity 1W/1 m89 dB SPL
Maximum Peak SPL at 1 m112 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
INTEGRAL-M26X
Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure ConstructionSteel
Enclosure GeometryRound
Cut Out Diameter185 mm (7,3 in)
Depth220 mm (8,7 in)
Dimensions ( H x W x D )220 x 220 x 220 mm
8,7 x 8,7 x 8,7 in
Net Weight2,7 kg ( 5,9 lb )
Title Format Size
Data Sheet
HT_DECO40T_00.pdf PDF 446 Kb
Modeling Data
MD_DECO_Focus_Evac_Address_GLL.zip ZIP 1.59 Mb
Line Drawing
CAD_2D_DECO-40T.dwg DWG 461 Kb
FM2375BI2399_10434090_2_clone_IMD.png KIT-IP-DECOIP kit for DECO-40-T, DECO-40-T-LP, DECO-65-T, DECO-80-T, DECO-80-TS
FM2319BI3627_10213400_IMD.png PK-40TAccessory for converting DECO-40-T into a pendant system, black
FM2320BI3630_10213430_IMD.png PK-40TWAccessory for converting DECO-40-T into a pendant system, white
FM2316BI3612_10213300_IMD.png SP-PRE-DECO-40TPre-construction bracket for DECO-40-T and DECO-40-T-LP, ensures precise placement and support for ceiling installation.
