PRODUCTS / DECO SERIES

DECO-40-T-LP

P/N. 10213236

Model
P/N

Features

2-way 4″ Coaxial High-Performance Ceiling System.
Low Profile Design: 99 mm depth for shallow ceilings.
Multi-tap transformer 8 ohm & 70V/100V.
Auto-locking tabs for secure, hands-free mounting.
Front selector for hassle-free power adjustments.
Frameless grille design, available in white or black.

Applications

Professional Installation Systems
Houses of Worship
Auditoriums/Theaters
Hotel Ballrooms and Meeting Rooms

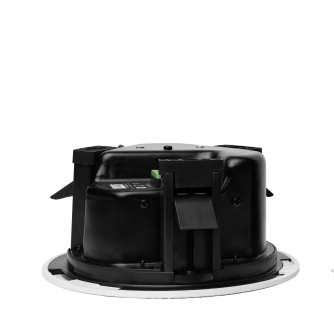

The DECO-40-T-LP is a sophisticated low-profile ceiling speaker system engineered for applications with limited plenum space. Featuring a sturdy steel enclosure and a polypropylene front, it provides 125º conical coverage. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for easy parallel connections. The DECO-40-T-LP operates at 8-ohm nominal impedance or in a 100V line system, with tap settings of 10W, 20W, and 30W accessible at the front. With an RMS power handling of 50W and peak power of 200W, and a maximum peak SPL of 110 dB, it delivers clear and powerful sound.

Its compact design, with a total depth of 110 mm (4.3 in) and recessed backcan depth of just 99 mm (3.9 in), allows straightforward installation in ceilings with minimal clearance. Measuring 220 x 220 x 110 mm and weighing 2.7 kg (5.9 lb), it strikes a balance between size, power, and aesthetic discretion. Available in black and white finishes, the DECO series seamlessly matches any interior design.

For optimal performance, pair the DECO-40-T-LP with the INTEGRAL-A402 or INTEGRAL-A404 amplifiers. Using the Integral Matrix and processors, fully compatible with ALMA™, enhances the speakers’ capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and maximum audio quality.

The modeling data for DECO-40-T / DECO-40-LP / DECO-65-T / DECO-80-T / DECO-80-TS are valid for EASE Focus, EASE Evac, and EASE Address.

Performance
Frequency Range (-10 dB)110 Hz – 20 kHz
Nominal Impedance8 ohms
Conical Coverage125º
Transformer Taps 70 V8 Ω / 5 W / 10 W / 15 W
Transformer Taps 100 V8 Ω / 10 W / 20 W / 30 W
RMS Power Handling50 W
Peak Power Handling200 W
On-axis Sensitivity 1W/1 m87 dB SPL
Maximum Peak SPL at 1 m110 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
INTEGRAL-M26X
Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure GeometryRound
Cut Out Diameter185 mm (7,3 in)
Depth110 mm (4,3 in)
Dimensions ( H x W x D )220 x 220 x 110 mm
8,7 x 8,7 x 4,3 in
Net Weight2,3 kg ( 5,0 lb )
Title Format Size
Data Sheet
HT_DECO40TLP_00.pdf PDF 446 Kb
Modeling Data
MD_DECO_Focus_Evac_Address_GLL.zip ZIP 1.59 Mb
Line Drawing
CAD_2D_DECO-40T-LP.dwg DWG 460 Kb
