PRODUCTS / DECO SERIES

DECO-65-T

P/N. 10213238

Model
P/N

Features

2-way 6.5″ Coaxial High-Performance Ceiling System.
Multi-tap transformer 8 ohm & 70V/100V.
Quick Install: Auto-locking tabs for secure, hands-free mounting.
Easy Access: Front selector for hassle-free power adjustments.

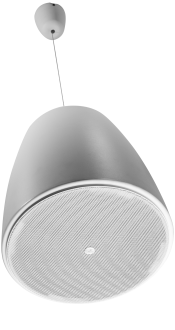

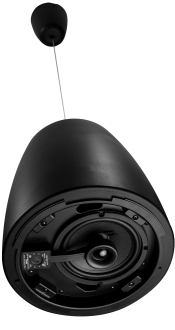

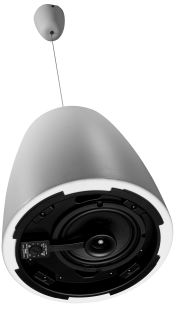

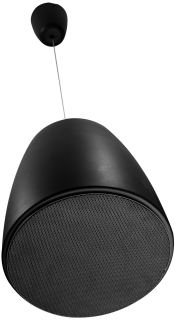

PK-65T accessory for versatile pendant mounting, available in white or black
Frameless grille design, available in black.

Applications

Professional Installation Systems
Houses of Worship
Auditoriums/Theaters
Hotel Ballrooms and Meeting Rooms


The DECO-65-T is an advanced ceiling speaker system designed for top-tier audio performance and seamless aesthetic integration. Featuring a sturdy steel enclosure and a durable polypropylene front, it provides 120º conical coverage. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for easy in and out link connections. The DECO-65-T operates at 8-ohm nominal impedance or in a 100V line system, with tap settings of 15W, 30W, and 60W accessible at the front. With an RMS power handling of 60W and a peak power of 240W, and a maximum peak SPL of 118 dB, it delivers robust and clear sound.

Its compact design, with a cut-out diameter of 245 mm (9.6 in), allows straightforward installation in various ceiling environments. Measuring 280 x 280 x 220 mm and weighing 4.3 kg (9.5 lb), it strikes a balance between size, power, and aesthetic discretion. The PK-65T accessory transforms it into a pendant speaker for greater placement flexibility and sound direction, especially beneficial in open architecture spaces or areas where traditional ceiling mounting is not optimal. Available in black and white finishes, the DECO series seamlessly matches any interior design.

For optimal performance, pair the DECO-65-T with the INTEGRAL-A402 or INTEGRAL-1004 amplifiers. Using the Integral Matrix and processors, fully compatible with ALMA™, enhances the speakers’ capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and maximum audio quality.

The modeling data for DECO-40-T / DECO-40-LP / DECO-65-T / DECO-80-T / DECO-80-TS are valid for EASE Focus, EASE Evac, and EASE Address.

Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Nominal Impedance8 ohms
Conical Coverage120º
Transformer Taps 70 V8 Ω / 7.5 W / 15 W / 30 W
Transformer Taps 100 V8 Ω / 15 W / 30 W / 60 W
RMS Power Handling60 W
Peak Power Handling240 W
On-axis Sensitivity 1W/1 m92 dB SPL
Maximum Peak SPL at 1 m118 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
INTEGRAL-M26X
Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure ConstructionSteel
Enclosure GeometryRound
Cut Out Diameter245 mm (9,6 in)
Depth220 mm (8,6 in)
Dimensions ( H x W x D )280 x 280 x 220 mm
11,0 x 11,0 x 8,6 in
Net Weight4,3 kg ( 9,5 lb )
Components
MF Driver6B
HF DriverTWT-65
Title Format Size
Data Sheet
HT_DECO65T_00.pdf PDF 493 Kb
Modeling Data
MD_DECO_Focus_Evac_Address_GLL.zip ZIP 1.59 Mb
Line Drawing
CAD_2D_DECO-65T.dwg DWG 472 Kb
