DECO SERIES Complete series

DECO-8

P/N. 10213204

Model

Color

DECO-8
P.N. 10213204
DECO-8-T
P.N. 10213205

Features

60 W, 8″ two-way passive full-range ceiling speaker, 8 ohm, white

SPL Max: 114 dB
Dispersion: 90º
Weight: 1,6 kg ( 3,5 lb )

Download data sheet Where to buy

description

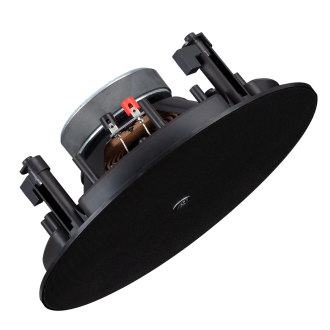

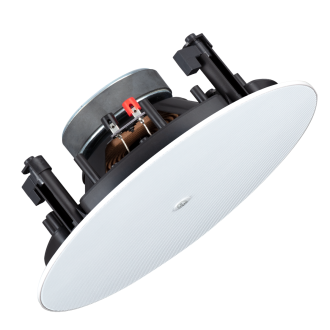

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

The DECO-8 is a wide-range passive two-way ceiling-mounted acoustic system featuring an 8” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It does not include a transformer and is specifically designed for low impedance.

technical data

Performance
Frequency Range (-10 dB)	50 Hz – 20 kHz
Nominal Impedance	8 ohms
Conical Coverage	90º
RMS Power Handling	60 W
Peak Power Handling	240 W
On-axis Sensitivity 1W/1 m	90 dB SPL
Maximum Peak SPL at 1 m	114 dB
Recommended Amplifier	INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604
Recommended Processor	INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004

Connectors
Audio Input Connector	Spring Terminals
Audio Output Connector	Spring Terminals
Enclosure
Enclosure Geometry	Round
Color	White
Cut Out Diameter	250 mm (9,9 in)
Depth	115 mm (4,6 in)
Dimensions ( H x W x D )	285 x 285 x 115 mm 11,3 x 11,3 x 4,6 in
Net Weight	1,6 kg ( 3,5 lb )
Shipping
Carton Dimensions ( H x W x D )	310 x 300 x 450 mm 12,2 x 11,8 x 17,7 in
Shipping Weight	1,8 kg ( 4,0 lb )
