PRODUCTS / DECO SERIES

DECO-80-TS

P/N. 10213224

Model
P/N

Features

High-Performance 8″ Ceiling Subwoofer.
Multi-tap transformer 8 ohm & 100V.
Quick Install: Auto-locking tabs for secure, hands-free mounting.
Easy Access: Front selector for hassle-free power adjustments.
PK-80T accessory for versatile pendant mounting, available in white or black
Frameless grille design, available in white or black.

Applications

Professional Installation Systems
Houses of Worship
Auditoriums/Theaters
Hotel Ballrooms and Meeting Rooms

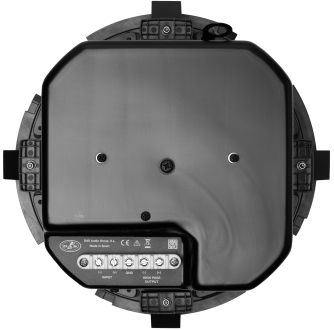

The DECO-80-TS is a high-performance ceiling subwoofer designed for top-tier audio performance and seamless aesthetic integration. Featuring a sturdy steel enclosure, it provides omnidirectional coverage with a frequency range of 50 Hz to 190 Hz, ideal for enhancing low-frequency in different environments. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for secure audio input. The DECO-80-TS operates at 8-ohm nominal impedance or in a 100V line system, with transformer tap settings of 25W, 50W, and 100W accessible at the front for easy post-installation adjustments. With an RMS power handling of 200W and a peak of 800W, and a maximum peak SPL of 115 dB, it delivers powerful and impactful bass.

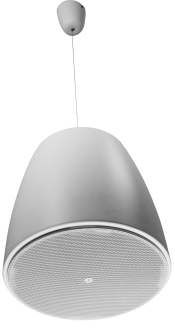

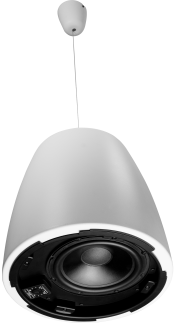

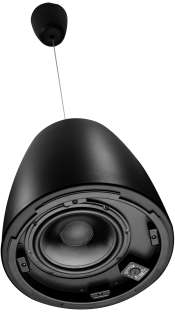

Its compact design, with a cut-out diameter of 290 mm (11.4 in) and a depth of 215 mm (8.5 in), allows straightforward installation in various ceiling environments. Weighing 5.5 kg (12.1 lb), it is built for long-lasting performance and aesthetic discretion. The PK-80T accessory transforms it into a pendant speaker for greater placement flexibility and sound direction, particularly beneficial in open architecture spaces or areas where traditional ceiling mounting is not optimal. Available in black and white finishes, the DECO series seamlessly matches any interior design.

For optimal performance, pair the DECO-80-TS with the INTEGRAL-A1002 or INTEGRAL-A1604 amplifiers. Utilizing the Integral Matrix and processors, fully compatible with ALMA™, enhances the subwoofer’s capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and superior audio quality.

Performance
Frequency Range (-10 dB)50 Hz – 190 Hz
Nominal Impedance8 ohms
Transformer Taps 70 V8 Ω / 12.5 W / 25 W / 50 W
Transformer Taps 100 V8 Ω / 25 W / 50 W / 100 W
RMS Power Handling200 W
Peak Power Handling800 W
On-axis Sensitivity 1W/1 m89 dB SPL
Maximum Peak SPL at 1 m115 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
INTEGRAL-M26X
Connectors
Audio Input Connector4-way Phoenix 3.8 mm
Enclosure
Enclosure GeometryRound
Cut Out Diameter290 mm (11,4 in)
Depth215 mm (8,5 in)
Dimensions ( H x W x D )321 x 321 x 215 mm
12,6 x 12,6 x 8,5 in
Net Weight5,5 kg ( 12,1 lb )
