EN54 SERIES Complete series

WR-8826-DX

P/N. 10428020


Model

Color

Features

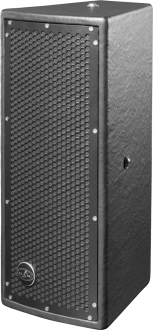

Passive, 200 W, 2×6″, 2 way full-range, 80×80 horn, DX, IP56, black

  • SPL Max: 122 dB
  • Dispersion: 80º x 80º
  • Weight: 11,0 kg ( 24,5 lb )

Download data sheetWhere to buy

description

The WR-8826-DX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.

The WR-8826-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.

technical data

Performance
Frequency Range (-10 dB)70 Hz – 22 kHz
Horizontal Coverage (-6 dB)80º
Vertical Coverage80º
Nominal Impedance16 ohms
RMS Power Handling200 W
Peak Power Handling800 W
On-axis Sensitivity 1W/1 m93 dB SPL
Maximum Peak SPL at 1 m122 dB
Recommended AmplifierINTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishFiberglass
ColorBlack
IP RatingIP56
Depth270 mm (10,6 in)
Dimensions ( H x W x D )550 x 230 x 270 mm
21,7 x 9,1 x 10,6 in
Net Weight11,0 kg ( 24,5 lb )
Components
LF Driver6B
HF DriverM-1
Horn/WaveguideBC-88
Shipping
Carton Dimensions ( H x W x D )608 x 274 x 345 mm
23,9 x 10,8 x 13,6 in
Shipping Weight15,0 kg ( 33,0 lb )

downloads

Title Format Size
Data Sheet
HT_WR8826DX_00.pdf PDF 1.09 Mb
User Manual
UM_WR2_01_EN.pdf PDF 2.04 Mb
Modeling Data
MD_WR_GLL.zip ZIP 1.87 Mb
MD_DAS_GLL_v13.zip ZIP 208 Mb
Software
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_WR8826.dwg DWG 253 Kb
LD_2D_WR8826.svg SVG 66 Kb
LD_3D_WR8826_DASAudio_01.skp SKP 178 Kb
Catalogs
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
Certifications
CT_DECLARATION_OF_PERFORMANCE_CPR-141_EN.pdf PDF 1.57 Mb
Architectural Specifications
AS_WR8826_01_EN.docx DOCX 13 Kb

Download   Download selection
