PRODUCTS / EVENT SERIES

EVENT-212.120A

P/N. 10429232

Model
P/N

Features

Clase D amplifier 3 x 1000 Wpeak
DAScontrol™ Interface for fast setup
High-end DSP chipsets with FIR filters
2 x DAS 12″ loudspeakers in dual band configuration
1 x DAS M-75 compression driver
EVENT-212A-120 with 120º wide coverage
Top grade Birch cabinet construction
Robust quick-rig professional rigging hardware

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

DAScontrol

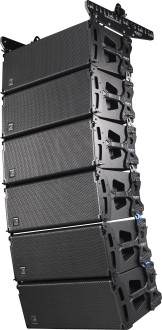

The DAS EVENT-212A is a powered, 3-way line array which employs two DAS 12″ loudspeakers in a dual band configuration where each speaker operates in a specific frequency range. At low frequencies, the speakers work in tandem for maximum power, each driven by a dedicated amplifier channel providing 1000 Wpeak output power. The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide to provide unmatched performance, sensitivity and coverage in both the 90º and 120º formats offered.

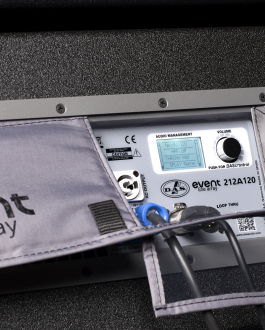

The EVENT-212A line array incorporates the DAScontrol™ interface which offers a quick and hassle-free set-up of the systems in arrays and easy alignment with the EVENT-218A and EVENT-121A subwoofer systems. Presets for the number of units of the array, HF compensation for throw distances, and correction for the splay angle of the array can be selected by way of DAScontrol™ and the LCD screen on the located on the back of the cabinet. The powerful digital signal processing of the EVENT-212A includes Finite Impulse Response (FIR) filters providing linear phase response and precise impulse response which in terms of performance, results in added clarity, defined attack in percussion and overall, a more natural sound.

Performance
Frequency Range (-10 dB)60 Hz -20 kHz
Horizontal Coverage (-6 dB)120º
Vertical CoverageSplay Dependent
Maximum Peak SPL at 1 m134 dB
Electronics and Connectors
Nominal Amplifier Power LF (continuous)500 W
Nominal Amplifier Power LF (peak)1000 W
Nominal Amplifier Power MF (continuous)500 W
Nominal Amplifier Power MF (peak)1000 W
Nominal Amplifier Power HF (continuous)500 W
Nominal Amplifier Power HF (peak)1000 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity6.2 V (+18 dBu)
Audio Signal Input Connector1 x Female XLR
Audio Signal Loop Thru Connector1 x Male XLR
AC Output ConnectorpowerCON NAC3FCB
Current Draw 230 V / 115 V1.8 A/3.6 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingCaptive Rigging System
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )325 x 855 x 435 mm
12,8 x 33,7 x 17,1 in
Net Weight41,0 kg ( 90,4 lb )
Components
LF Driver12MI4
MF Driver12MI4
HF DriverM-75
Horn/WaveguideBPS-120EV00
Shipping
Carton Dimensions ( H x W x D )470 x 275 x 480 mm
18,5 x 10,8 x 18,9 in
Shipping Weight43,5 kg ( 95,9 lb )
Title Format Size
Data Sheet
HT_EVENT212.120A_00.pdf PDF 648 Kb
User Manual
UM_EV212_01_EN.pdf PDF 11.31 Mb
Modeling Data
MD_Event_GLL_(1).zip ZIP 66.11 Mb
MD_DAS_GLL_v13.zip ZIP 208 Mb
Software
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_EV212A120.dwg DWG 843 Kb
LD_2D_EV212.120A.png PNG 92 Kb
LD_2D_EV212.120A.svg SVG 270 Kb
LD_3D_EVENT-212_DASAudio_01.skp SKP 265 Kb
Catalogs
CAT_EVENT_03_EN.pdf PDF 3.1 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
FM1387BI1663_10102784_IMD.png AX-COMBOEV1208Rigging adapter to combine EVENT-212A/EVENT-212.120A with EVENT-208A, black, 13.2 kg (29.0 lb)
FM1388BI1663_10102786_IMD.png AX-COMBOEV1210Rigging adapter to combine EVENT-212A/EVENT-212.120A with EVENT-210A, black, 15.0 kg (33.0 lb)
FM162BI1667_10102734_IMD.png AX-EV212Rigging bumper for EVENT-212A (max 16 u.), black, 32.0 kg (70.4 lb)
FM1385BI1824_10102761_IMD.png AXS-EV212Stacking bracket for EVENT-212A/EVENT-212.120A systems above EVENT-218A or on the ground, black, 10.1 kg (22.2 lb)
FM1390BI1697_10103662_IMD.png FUN-4-EV212Protective transport cover for 4 u. EVENT-212A on PL-EV212S, black
FM1386BI1702_10102782_IMD.png PICKUP-AX-EV212Additional pick-up bar for two lifting points for AX-EV212, black, 13.0 kg (28.6 lb)
FM1328BI1877_10113183_IMD.png PL-EV212SSteel transport dolly for EVENT-212A/EVENT-212.120A (max 4 u.), black
FM303BI1831_20502210_IMD.png PWCONLINK-090.9m powerCON NAC3FCA+NAC3FCB DASnet cable
FM305BI1855_20501020_IMD.png SC-11m XLR microphone signal balanced cable
FM306BI1855_20501050_IMD.png SC-1010m XLR microphone signal balanced cable
FM801BI2162_10214320_IMD.png 12MI4Low-mid frequency 12″ speaker, 2.5″ VCD, ferrite magnet, 300 W AES, 4 ohm
FM1424BI1760_20301090_IMD.png BPS-120EV00Spare horn for EVENT-212.120A
FM1411BI1618_20406436_IMD.png DSP-EVENT-212A.120ADSP-Board für EVENT-212.120A
FM443BI2179_20208300_IMD.png GM-12MI4Recone kit for 12MI4 speaker
FM475BI2205_20205080_IMD.png GM-M75NDiaphragm for M-75N/M-75/M-80 compression driver
FM352BI2233_10208100_IMD.png M-75Compression driver, 3″ VCD, ferrite magnet, 1.5″ throat, 100 W AES, 8 ohm
FM1407BI1634_20405092_IMD.png MP-EV212.120AComplete power module for EVENT-212.120A

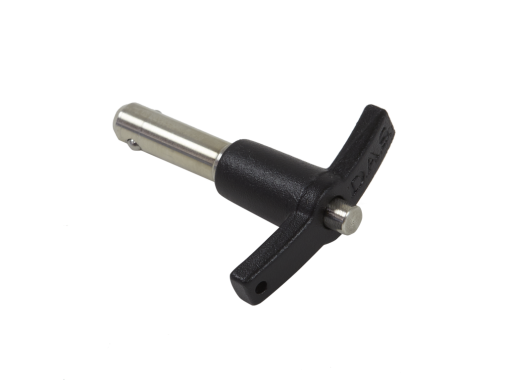

FM1198BI1653_30006080_IMD.png PIN-8CLock Pin Ø:8 mm L:22 mm, black
FM535BI1793_30006244_IMD.png S-A1Class D Pascal amplifier, 1×500 W @ 4 ohm
FM554BI1795_30006153_IMD.png S-PRO2Class D switching power supply Pascal amplifier, 2×500 W @ 4 ohm
