EVENT-26A

P/N. 10435010

Model
P/N

Features

Ultra-compact, lightweight powered line array
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrolTM
High-end 24-bit DSP with LCD screen
FIR processing for constant phase response
FSSTM Fast Set Splay rigging for quick deployment

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

DAScontrol
The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

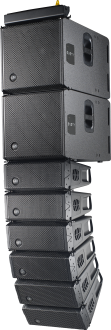

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.

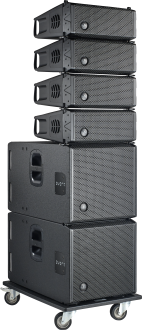

Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.
Performance
Frequency Range (-10 dB)76 Hz – 19 kHz
Horizontal Coverage (-6 dB)100º
Vertical CoverageSplay Dependent
Maximum Peak SPL at 1 m131 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)400 W
Nominal Amplifier Power (peak)800 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity6.2 V (+18 dBu)
Audio Signal Input Connector1 x Female XLR
Audio Signal Loop Thru Connector1 x Male XLR
AC Output ConnectorpowerCON NAC3MPB
Current Draw 230 V / 115 V0.8 A/1.6 A
Enclosure
Enclosure ConstructionPolypropylene
Enclosure GeometryTrapezoidal
RiggingCaptive Rigging System
ColorBlack
Dimensions ( H x W x D )225 x 480 x 500 mm
8,9 x 18,9 x 19,1 in
Net Weight16,5 kg ( 36,4 lb )
Components
LF Driver6MI
HF DriverM-60
Shipping
Carton Dimensions ( H x W x D )565 x 565 x 290 mm
22,2 x 22,2 x 11,4 in
Shipping Weight20,0 kg ( 44,0 lb )
Title Format Size
Data Sheet
HT_EVENT26A_00.pdf PDF 1.57 Mb
User Manual
UM_EV26A115A_02_EN.pdf PDF 5.71 Mb
Modeling Data
MD_DAS_GLL_v13.zip ZIP 208 Mb
MD_Event_GLL_(1).zip ZIP 66.11 Mb
Software
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_EV26A.dwg DWG 2.48 Mb
LD_2D_EV26A.svg SVG 1.29 Mb
LD_3D_EVENT-26_DASAudio_01.skp SKP 555 Kb
Catalogs
CAT_EVENT_03_EN.pdf PDF 3.1 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
FM1549BI2853_10102365_IMD.png AX-EV26Rigging bumper for EVENT-26A (max 16 u.), black, 11.5 kg (25.3 lb)
FM159BI2858_10104320_IMD.png AXC-ZTSpeaker adaptor (required for TRD-2/TRD-6/TRD-7, black
FM1550BI2854_10102366_IMD.png AXS-EV26Stacking bracket for EVENT-26A (max 4 u. when stacked on any sub), black, 3.5 kg (7.7 lb)
FM1554BI2905_10103785_IMD.png FUN-4-EV26Protective transport cover for 4 u. EVENT-26A on PL-EV26S, black
FM2097BI2906_10103784_IMD.png FUN-6-EV26Protective transport cover for 6 u. EVENT-26A on PL-EV26S, black
FM1551BI2855_10102979_IMD.png JP-EV26Joining plate for array assembling EVENT-26A/EVENT-115A, black
FM1552BI2856_10113280_IMD.png PL-EV26STransport dolly for EVENT-26A (max 6 u.), black
FM303BI1831_20502210_IMD.png PWCONLINK-090.9m powerCON NAC3FCA+NAC3FCB DASnet cable
FM304BI1855_20501010_IMD.png SC-050.5m XLR microphone signal balanced cable
FM305BI1855_20501020_IMD.png SC-11m XLR microphone signal balanced cable
FM306BI1855_20501050_IMD.png SC-1010m XLR microphone signal balanced cable
FM310BI1708_10104470_IMD.png TRD-6Ring lock pole mount 35 mm x 750 mm for use between satellite and sub system, black
FM1509BI1832_10104471_IMD.png TRD-735 mm ring lock adjustable height (1005 mm – 1485 mm) pole mount for use between satellite and sub systems, black
FM2098BI2770_10104011_IMD.png TRPD-S2-PAKSet of 2 aluminum speaker stands with transport cover for all models with 35mm pole mount socket, black.
FM1546BI2754_20208985_IMD.png 6MILow-mid frequency 6″ speaker, 1.5″ VCD, ferrite magnet, 200 W AES, 8 ohm

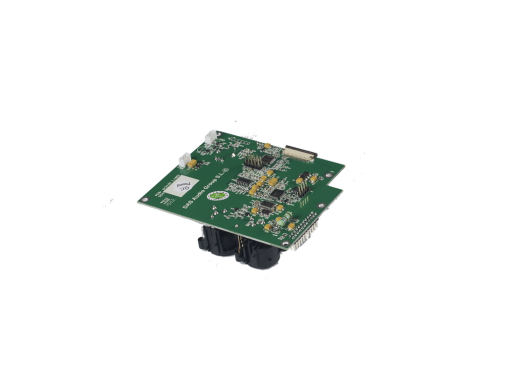

FM1542BI2840_20406439_IMD.png DSP-EV26Spare DSP for EVENT-26A
FM474BI2204_20205090_IMD.png GM-M60NHigh Tech Polymer Diaphragm for M-60N/M-60 compression driver
FM1350BI1737_20208790_IMD.png M-60Compression driver, 1.75″ VCD, ferrite magnet, 1″ throat, 75 W AES, 8 ohm

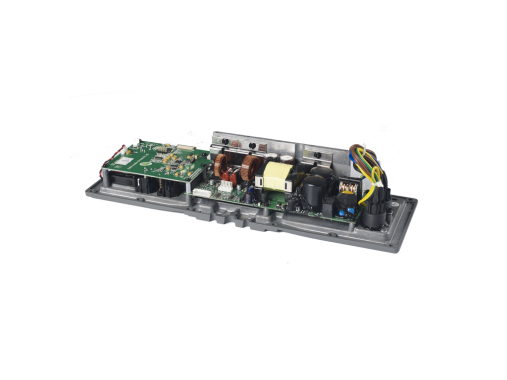

FM1540BI2841_20405100_IMD.png MP-EV26AComplete power module for EVENT-26A
FM2395BI2766_30007231_clone_IMD.png OR300+100UMClass D switching power supply Orbit amplifier, 1×300 W @ 4ohm + 1×100 W @ 8 ohm
FM1200BI1648_30002878_IMD.png PIN-6Lock Pin Ø:6 mm L:23 mm, black
