VANTEC SERIES Complete series

VANTEC-118A

P/N. 10431140


Model

Color

Features

Powered, 1000 W, 18″, long excursion bass-reflexsubwoofer, black

  • SPL Max: 134 dB
  • Dispersion: Omnidirectional
  • Weight: 44,0 kg ( 97,0 lb )

Download data sheetWhere to buy

description

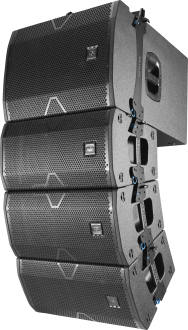

The VANTEC-118A is an active front loaded bass system which has been designed specifically for use with the VANTEC-20Acurved source line array. Compact in size, the unit can be flown in arrays or linked together in ground stacks thanks to the rigging system which is compatible with the VANTEC-20A.

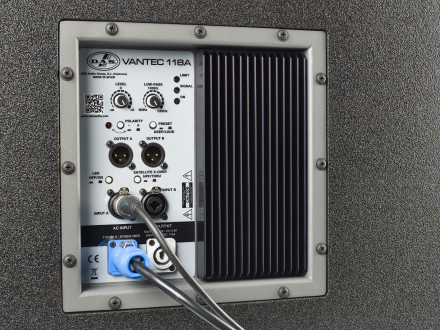

The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique “Deep-Loud” EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the “Deep” setting or a louder hard hitting performance in the “Loud” setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A offering precise alignment without the need of an external DSP.

technical data

Performance
Frequency Range (-10 dB)35 Hz – 125 Hz
Maximum Peak SPL at 1 m134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)1000 W
Nominal Amplifier Power (peak)2000 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity3 V (+12 dBu)
Audio Signal Input Connector2 x Female XLR
Audio Signal Loop Thru Connector2 x Male XLR
AC Output ConnectorpowerCON NAC3FCB
Current Draw 230 V / 115 V2.2 A/4.4 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )490 x 615 x 785 mm
19,3 x 24,2 x 30,9 in
Net Weight44,0 kg ( 97,0 lb )
Components
LF Driver18FW
Shipping
Carton Dimensions ( H x W x D )730 x 660 x 880 mm
28,7 x 26,0 x 34,7 in
Shipping Weight48,0 kg ( 105,6 lb )

downloads

Title Format Size
Data Sheet
HT_VANTEC118A_00.pdf PDF 880 Kb
User Manual
UM_VANTEC_20_118_EN.pdf PDF 1.95 Mb
UM_VT3_02_EN.pdf PDF 5.39 Mb
Modeling Data
MD_VANTEC_GLLs.zip ZIP 13.45 Mb
MD_DAS_GLL_v13.zip ZIP 208 Mb
Software
SW_DASLINK_APP.zip ZIP 24.89 Mb
SW_DASlinkGM_APP.zip ZIP 11.77 Mb
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_VT118A.dwg DWG 1.91 Mb
LD_2D_VT118A.png PNG 66 Kb
LD_2D_VT118A.svg SVG 337 Kb
Catalogs
CAT_VANTEC_02_EN.pdf PDF 7.37 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
