VANTEC SERIES Complete series

VANTEC-15A

P/N. 10431040


Model

Color

  • VANTEC-15A
    P.N. 10431040

Features

Powered, 750 W, 15″, 2 way full-range, 90×50 horn, LCD control interface+wireless, black

  • SPL Max: 135 dB
  • Dispersion: 90º x 50º
  • Weight: 25,5 kg ( 56,2 lb )

Download data sheetWhere to buy

description

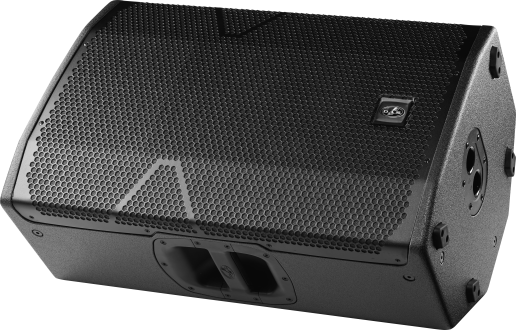

The VANTEC-15A is a powered potable system with a multi-angle enclosure that permits stage monitor applications as well as a compact P.A. system.

The 1500 Wpeak power of the Class D amplifier provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment.

Digital Finite Impulse Response (FIR) filters are used in the signal processing of the powered Vantec-systems. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet. The Vantec-series allows users to wirelessly stream music from mobiles devices.

The 15FV4 loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-28 FEM optimized compression driver with 1″ exit offering excellent performance.

technical data

Performance
Frequency Range (-10 dB)45 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage50º
Maximum Peak SPL at 1 m135 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)750 W
Nominal Amplifier Power (peak)1500 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity3 V (+12 dBu)
Audio Signal Input Connector2 x Female XLR
AUX Input1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector1 x Male XLR
ControlDASlink™
DAScontrol™
Current Draw 230 V / 115 V1.5 A/3.0 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )720 x 445 x 380 mm
28,3 x 18,0 x 17,5 in
Net Weight25,5 kg ( 56,2 lb )
Components
LF Driver15FV4
HF DriverM-28
Horn/WaveguideBC-95
Shipping
Carton Dimensions ( H x W x D )815 x 451 x 526 mm
32,1 x 17,8 x 20,7 in
Shipping Weight27,5 kg ( 60,6 lb )

downloads

Title Format Size
Data Sheet
HT_VANTEC15A_00.pdf PDF 1.71 Mb
User Manual
UM_VANTEC_Active_02_EN.pdf PDF 3.09 Mb
UM_DASlinkGM_V1_EN.pdf PDF 2.9 Mb
Modeling Data
MD_VANTEC_GLLs.zip ZIP 13.45 Mb
MD_DAS_GLL_v13.zip ZIP 208 Mb
Software
SW_DASLINK_APP.zip ZIP 24.89 Mb
SW_DASlinkGM_APP.zip ZIP 11.77 Mb
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_VT15A.dwg DWG 2.25 Mb
LD_2D_VT15A.svg SVG 329 Kb
Catalogs
CAT_VANTEC_02_EN.pdf PDF 7.37 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
Certifications
CT_DECLARATION_OF_CONFORMITY_VANTEC12A_15A_215A_20A.pdf PDF 2.01 Mb
