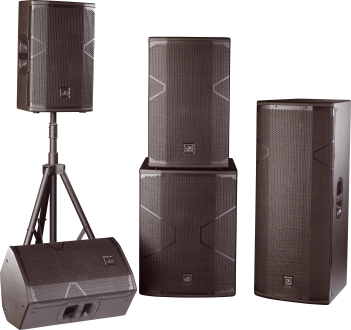

VANTEC SERIES Complete series

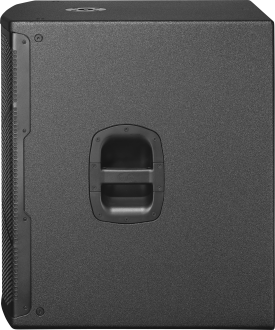

VANTEC-18A

P/N. 10431100


Model

Color

  • VANTEC-18A
    P.N. 10431100

Features

Powered, 1000 W, 18″, compact long excursion bass-reflexsubwoofer, black

  • SPL Max: 134 dB
  • Dispersion: Omnidirectional
  • Weight: 40,5 kg ( 89,2 lb )

Download data sheetWhere to buy

description

The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000 Wpeak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4″ voice coil for high power handling and output.

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.

technical data

Performance
Frequency Range (-10 dB)Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz
Maximum Peak SPL at 1 m134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)1000 W
Nominal Amplifier Power (peak)2000 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity3 V (+12 dBu)
Audio Signal Input Connector2 x Female XLR
Audio Signal Loop Thru Connector2 x Male XLR
AC Output ConnectorpowerCON NAC3FCB
Current Draw 230 V / 115 V1.5 A/3.0 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )720 x 545 x 655 mm
28,3 x 21,5 x 25,8 in
Net Weight40,5 kg ( 89,2 lb )
Shipping
Carton Dimensions ( H x W x D )820 x 616 x 726 mm
32,3 x 24,3 x 28,6 in
Shipping Weight44,0 kg ( 97,0 lb )

downloads

Title Format Size
Data Sheet
HT_VANTEC18A_00.pdf PDF 1.31 Mb
Modeling Data
MD_VANTEC_GLLs.zip ZIP 13.45 Mb
MD_DAS_GLL_v14.zip ZIP 222.04 Mb
Software
SW_DASLINK_APP.zip ZIP 24.89 Mb
SW_DASlinkGM_APP.zip ZIP 11.77 Mb
SW_EASE_Focus_v3.1.260.zip ZIP 49.76 Mb
Line Drawing
CAD_2D_VT18A.dwg DWG 1.41 Mb
LD_2D_VT18A.svg SVG 79 Kb
Catalogs
CAT_VANTEC_02_EN.pdf PDF 7.37 Mb
CAT_DAS_2020_FULL_LINE_7_2.pdf PDF 13.19 Mb
